UV-C System for Mold Control in Refrigeration and Seasoning Cells, up 40 m³
UV-REFLEX performs a progressive action of decontamination from airborne bacteria and mold present in the air of the cold rooms, improving the conditions of preservation of products. Ensures full compliance with the specific measures regarding "dry ageing" as provided by Delegated Regulation (EU) No. 1141/2024.
€529
Tax included
- Secure payment via Stripe
- Quantity:
- Guaranteed quality
- Fast shipping
- Secure payments
UV-REFLEX improves the preservation and maturation of food inside controlled temperature and humidity chambers. The treatment works by utilizing the continuous forced circulation of air, which passes next to the device and is decontaminated from microbes before coming into contact with the products.
ADVANTAGES:
Extends the shelf-life of food stored in refrigerated chambers, without developing resistant microorganisms and without the use of chemicals.
Effectively manages temperature and humidity in the chamber to limit dehydration and weight loss of products during storage and maturation.
Reduces product loss due to bacterial and mold proliferation, while improving freshness, flavor, and appearance of food.
Compliance with specific measures regarding the "dry aging" of meat, as required by Delegated Regulation (EU) No. 1141/2024.
MAIN FEATURES:
The UV-C treatment is cold and dry, does not alter the organoleptic characteristics of food or its quality, and does not affect the normal maturation of the product.
It only affects the growth of unwanted microorganisms, i.e., those present in the air.
Low power consumption, with lamp replacement once a year or every two years, and an estimated return on investment within two years of installation.

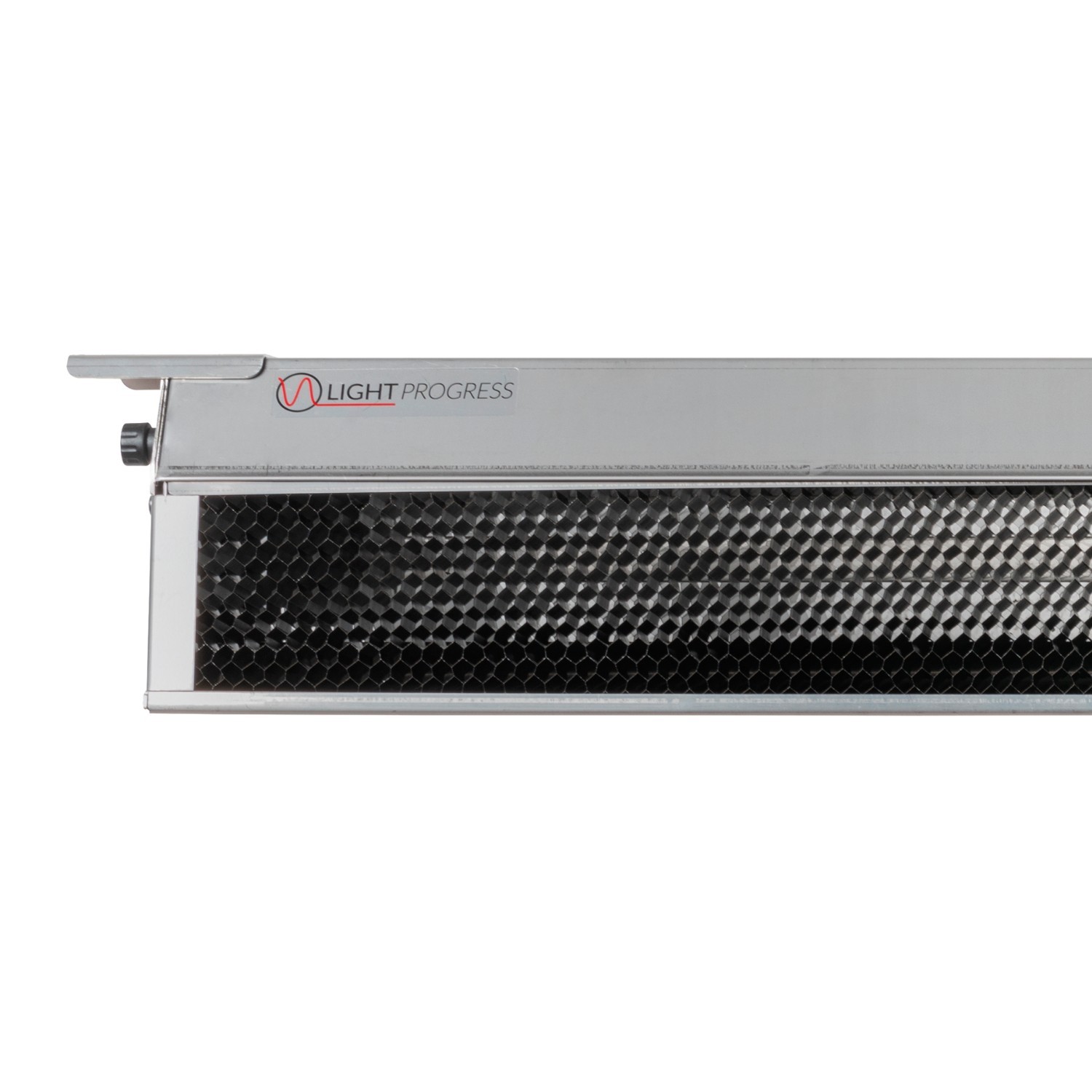

Built to last, made of high-quality AISI 304 stainless steel and materials tested to resist UV rays. Entirely made in Italy.
Designed with purpose, featuring a unique design, developed to offer the best UV-C performance in refrigerated chambers.
Can remain on continuously without any contraindications or risks to products or operators.
Eliminates up to 99% of bacteria such as Bacillus, Coli, Clostridium, Legionella, Vibrio, Salmonella, Pseudomonas, Staphylococcus, etc.
INSTALLATION TIPS:

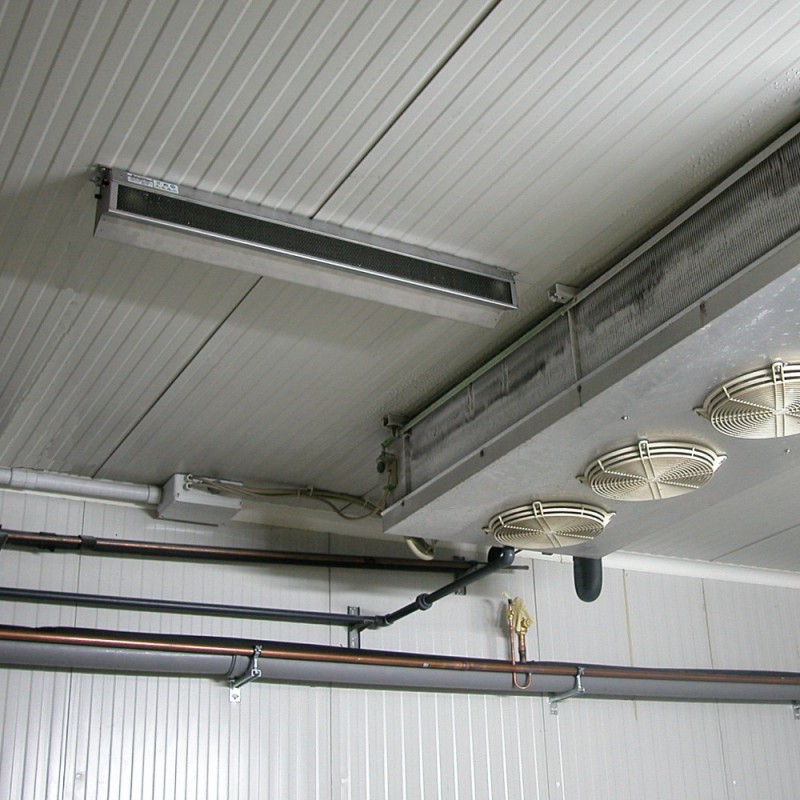

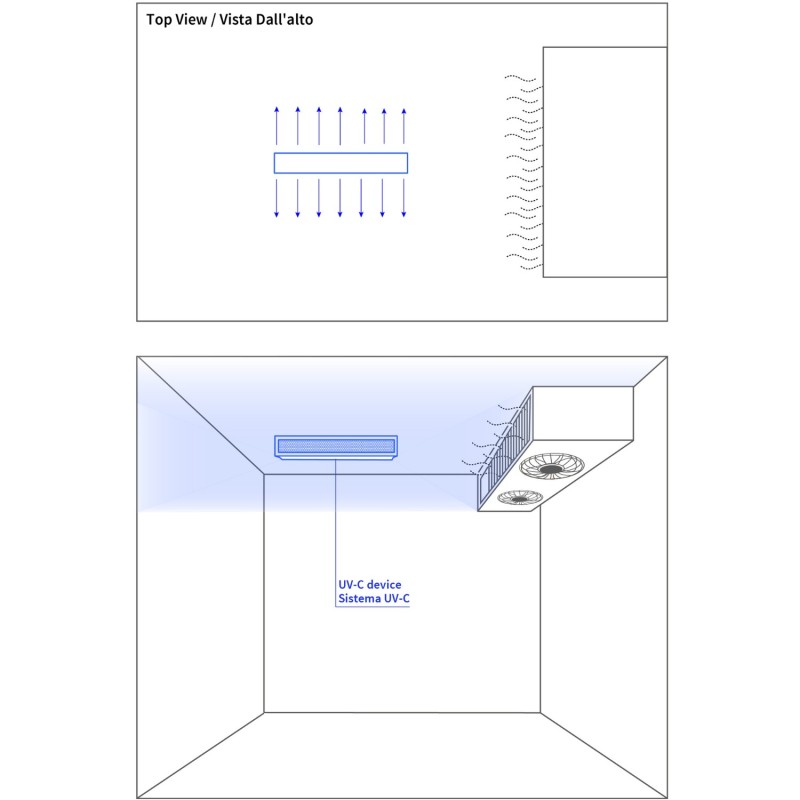

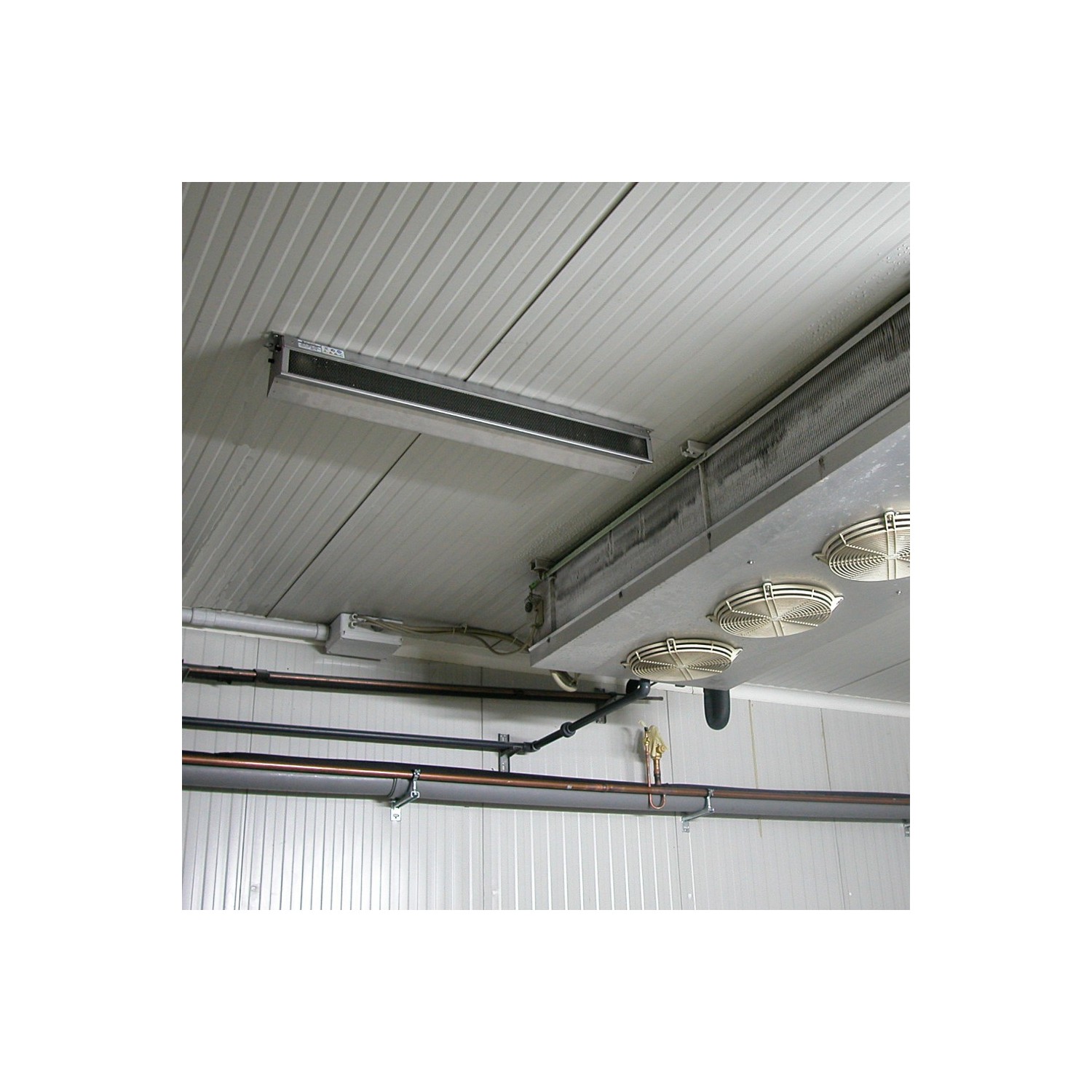

UV-REFLEX-40H-SC/B-NX allows the treatment of air volumes up to 40 cubic meters. It is recommended to install a UV system for each airflow outlet from the evaporator.
For cells larger than 40 cubic meters, purchase the UV-REFLEX-90H-SC/B-NX model and install multiple UV systems, arranging them uniformly to treat the airflow from each evaporator.
Our free configuration software allows you to calculate how many lamps are needed based on the size of your cell.

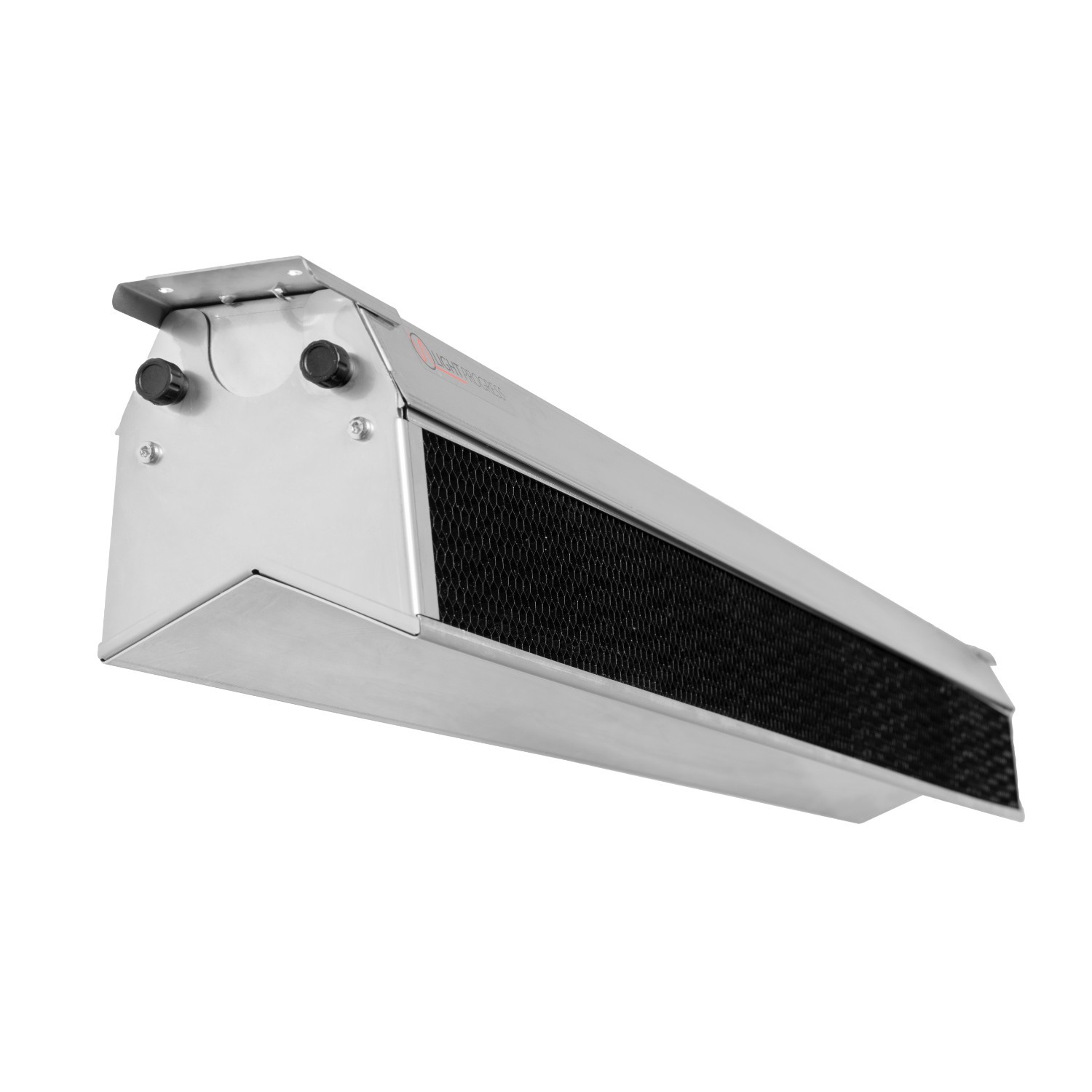

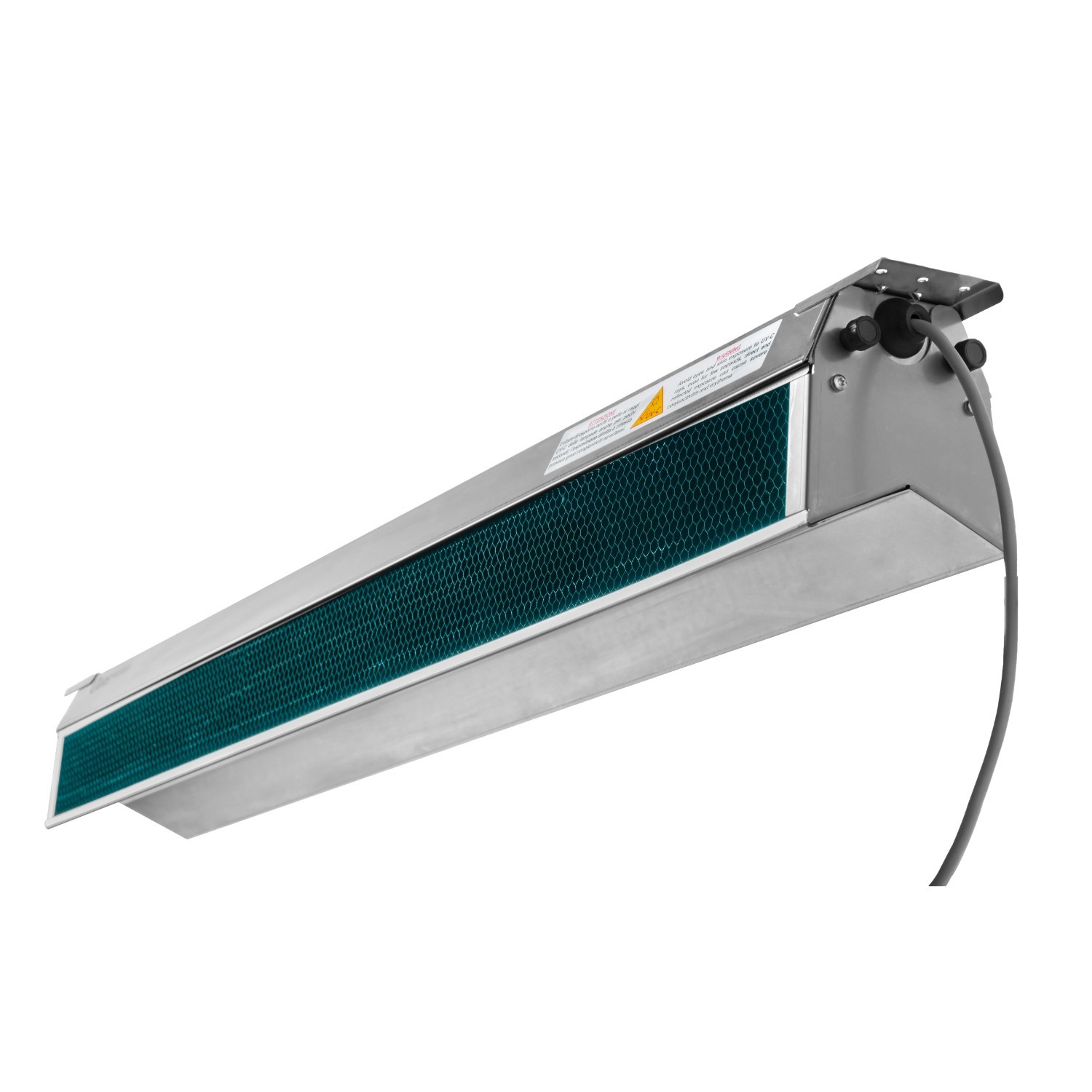

The product arrives pre-assembled, with a ceiling mounting bracket and a 2.5-meter power cable, designed for connection to a 220-240V, 50/60Hz power supply.
Optional suspension brackets (ST-20, set of 2) allow adjustment of the UV-C system installation height to 20 cm from the ceiling.
It is recommended to purchase the UVLON protection for each lamp to reduce the risk of glass breakage in case of accidental fall during installation or replacement.
Please refer to the user and maintenance manual for any additional information.
| Used Lamp | CHS40WHF |
|---|
UVC light is a type of ultraviolet radiation within the electromagnetic spectrum, with wavelengths between 100 and 280 nanometers. At a wavelength of 254 nm, UVC light is particularly effective at inactivating microorganisms like bacteria, viruses, mold, and spores.
How it works:
UVC technology inactivates microorganisms through photodestruction of their DNA and RNA:
UVC light penetrates the cells of microorganisms, damaging their genetic material.
This prevents reproduction and renders the microorganisms harmless.
UVC disinfection is chemical-free and environmentally friendly, with decades of proven use for air, water, and surface disinfection across sanitary, industrial, and domestic applications.
At Light Progress, our solutions are designed for safe, controlled use, ensuring cleaner, healthier environments.
Our air purifiers combine two advanced technologies for effective air treatment:
UVC Disinfection
Air is drawn into the purifier and passes through a UVC disinfection chamber, where 254 nm UVC light eliminates microorganisms such as viruses, bacteria, and mold by inactivating their DNA/RNA, preventing proliferation.
Photocatalytic Filtration (TiOx)
A filter made of titanium dioxide (TiOx) activates a photocatalytic process when exposed to UVC light. This decomposes volatile organic compounds (VOCs)—the source of odors, pollutants, and allergens—transforming them into harmless substances like water vapor and carbon dioxide.
Key benefits:
Eliminates pathogens (viruses, bacteria, and mold).
Neutralizes odors and organic pollutants.
Ensures deep air purification without chemicals.
Ideal for both residential and professional settings, this technology improves air quality, ensuring a safer and healthier environment."-C rays (100-280 nm) have a strong germicidal effect and reach their maximum efficacy at the 265 nm wavelength. The germicidal effect of UV-C radiation covers bacteria, viruses, spores, fungi, moulds and mites; this is mainly due to the destructive effect of the UV-C rays on their DNA, which damage their reproductive system and prevent them from replicating.
Our UVC devices provide effective water disinfection by inactivating viruses, bacteria, mold, and algae without altering water quality.
How it works:
Water flows through a stainless-steel chamber, a reflective material that optimizes UVC light diffusion.
Internal diffusers regulate water flow, ensuring even exposure to UVC light (254 nm).
UVC light penetrates water particles, destroying the DNA/RNA of microorganisms, eliminating pathogens, and preventing their proliferation.
Applications:
Ideal for homes, schools, offices, medical facilities, sports centers, and other public/private environments, our devices deliver safe, pathogen-free water without chemicals, odors, or changes in taste.
Our UVC cabinets and boxes are designed to quickly and effectively sanitize various objects by eliminating microorganisms such as bacteria, viruses, and mold.
How it works:
High-intensity UVC light (254 nm) is uniformly emitted within the chamber, penetrating microorganisms' cells and disrupting their DNA/RNA, preventing reproduction and ensuring rapid inactivation.
Applications:
Professional tools: Medical, pharmaceutical, and dental instruments (e.g., scalpels, forceps).
Food contact items: Utensils like knives and cutting boards, critical for food safety.
Everyday objects: Phones, keys, glasses, masks, and electronic devices.
Key features:
Quick and effective sanitization (99.9% efficacy, laboratory tested).
Safe, controlled, and intuitive operation for professional and home use.
Yes. Light Progress products are developed using rigorous scientific principles and validated through extensive testing with independent laboratories and leading universities.
Proven results:
Our UVC solutions eliminate up to 99.99% of harmful microorganisms, including:
- Bacteria and viruses
- Mold and spores
- Odors and VOCs
These certifications guarantee reliable, documented performance for maximum protection.
Yes, when used correctly and within properly designed devices.
Our air purifiers, UVC cabinets, and water disinfection systems feature shielded chambers to prevent direct exposure to UVC light, ensuring user safety in residential and professional settings.
Advantages:
Chemical-free: Leaves no toxic residue.
Safe for environments with people and animals.
Tested and certified to meet current safety standards.
With Light Progress, you can trust in safe, effective, and environmentally friendly disinfection solutions for cleaner air, water, and surfaces.
